RAMmount-H

Applications

• Floor or roof mount
• Economical design
• Standard capacity

Features

• Integrated seismic and wind restraints
• Steel coil
• 11-gauge steel housing
• Neoprene rubber snubbing grommet
• Available with bolted base plate
• Easy installation
• 1″ or 2″ deflection

Description

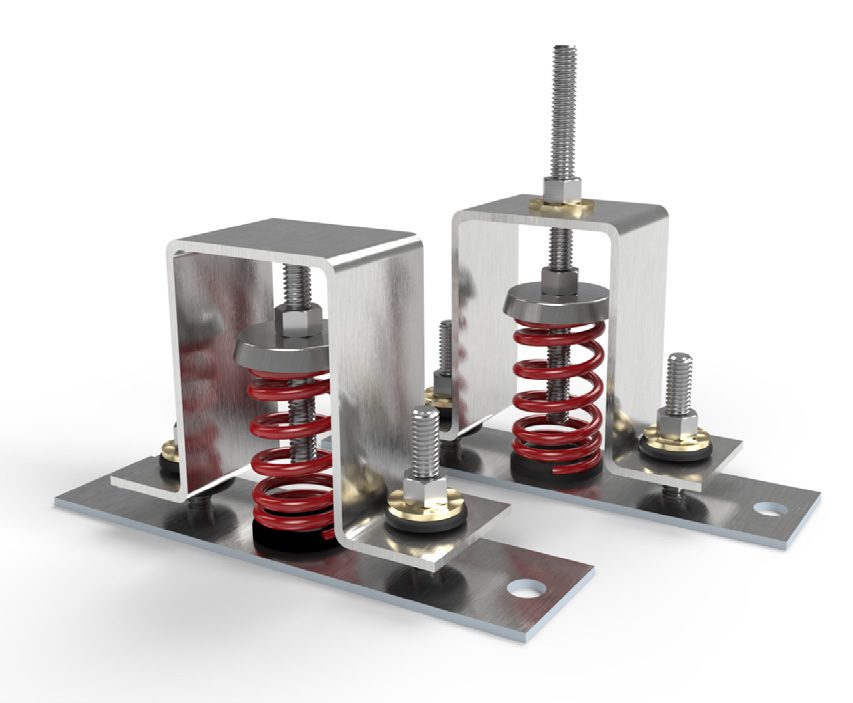

The RAMmount‐H isolator is RAM‐ISO’s versatile roof curb and floor mount isolator featuring an 11-gauge steel housing. Designed to integrate with any roof curb or floor‐mounted piece of equipment, the RAMmount‐H isolator will aid to reduce the vibration from large mechanical and electrical equipment to the building structure. The RAMmount‐H has integrated lateral and vertical restraints in order to account for seismic and wind loads. RAM will engineer each RAMmount-H isolator to match your specified unit and meet any additional customer requirements. The RAMmount-H isolator is available in either 1” or 2″ deflection and is shipped fully assembled in order to reduce onsite labor requirements. The springs are made of structural steel and sit on an elastomeric mount. The housing is made entirely of structural steel and is available for fully welded or fully bolted applications.
