RAMPad-WF System

Applications

• Vibration reduction of roof-mounted equipment
• Built-in vibration isolation

Features

• Gasket material
• Adhesive backing for easy installation
• Built-in, inherent isolation properties
• Can be stacked to increase natural frequency
• Meets applicable testing requirements
• Quick lead time

Description

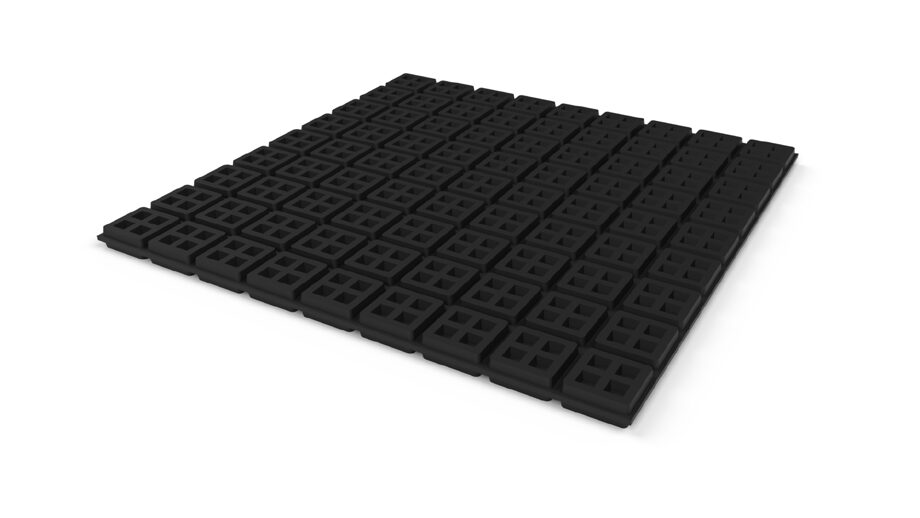

RAM-ISO’s RAMpad-WF system is ideal for use in both critical and non-critical areas when higher mechanical loads require an efficient, cost-effective noise and vibration solution. Is it designed to reduce the noise and vibration emitted from a piece of equipment using a 70-durometer, waterproof elastomeric rubber material. The RAMpad-WFsystem is manufactured as an 18″ x 18″ x 0.75″ square pad with 2″ x 2″ square grooves. These grooves allow for easy, on-site field modifications using only a utility knife, making the RAMpad-WF customizable for any size and shape required.
